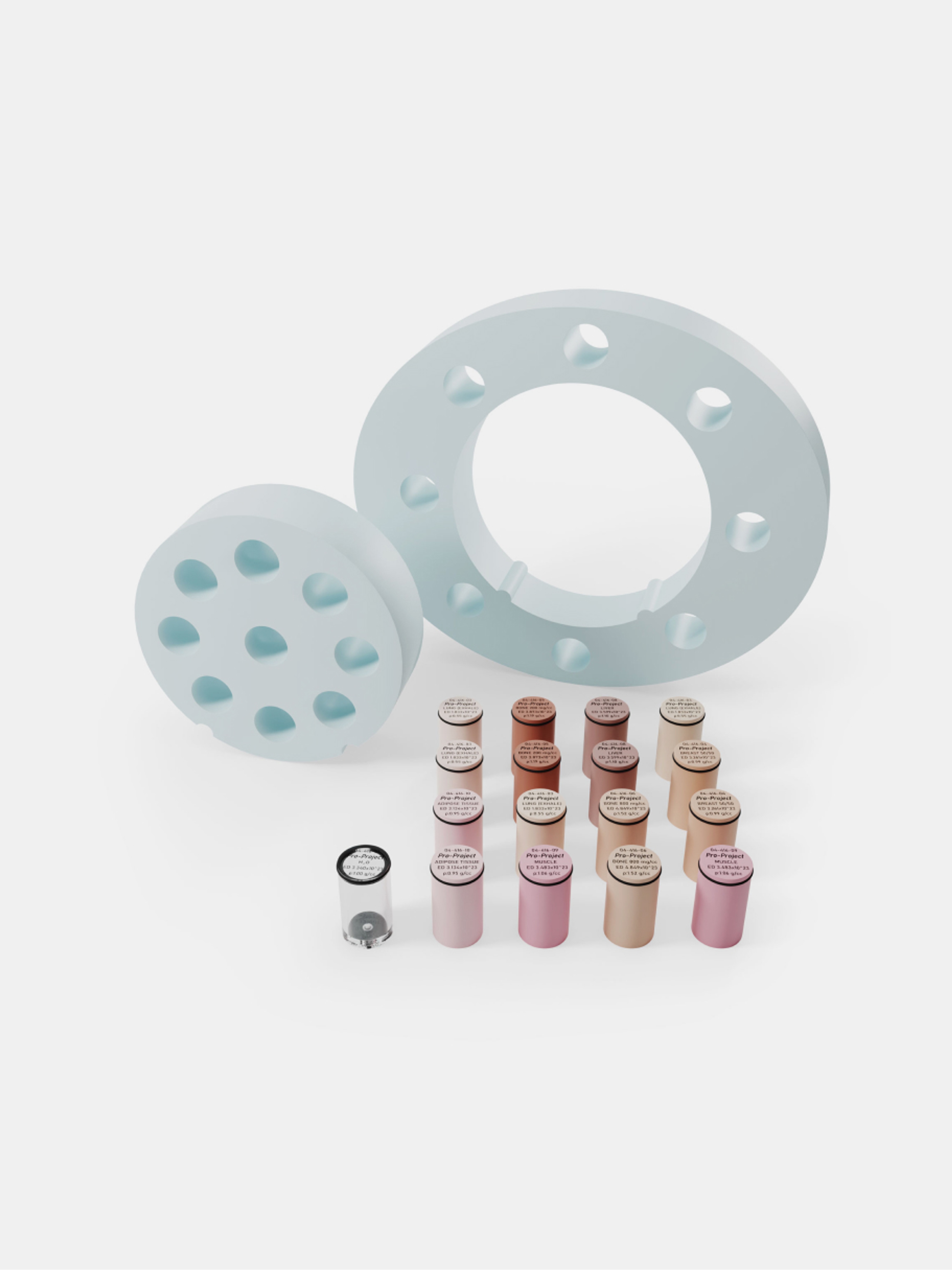

The Electron Density phantom phantom is used to account for tissue heterogeneity in radiotherapy treatment planning. It can be used to define precise correlation of CT data to electron density of various tissues. Phantom consists of two nested disks that represent head and abdomen. Nine different tissue equivalent electron density plugs can be positioned at 17 different locations within the scan field. Included is a water vial plug that can be filled with any fluid. Optional distance marker plugs enable quick assessment of the CT scanner’s distance measurement accuracy.
Specifications
Technical data (can be modified to customer specifications):
- Electron density head insert: Ø 180 × 50 mm
- Electron density body without head insert: 330 × 270 × 50 mm
- Electron density plugs supplied: lung (inhale), lung (exhale), breast (50 % gland / 50 % adipose), solid trabecular bone (200 mg/cc HA), liver, muscle, adipose, solid dense bone (800 mg/cc HA), solid dense bone (1250 mg/cc HA), water-fillable plug
- Set of 2 feet
- Carrying case
Models
- 07-601 - Electron Density Phantom
Optional additional inserts:
- 07-601-11 - Titanium insert
- 07-601-12 - Stainless steel insert
