The PBU-70 is designed to accurately reproduce the anatomy of a 5-year-old child, supporting training and research in pediatric radiology.

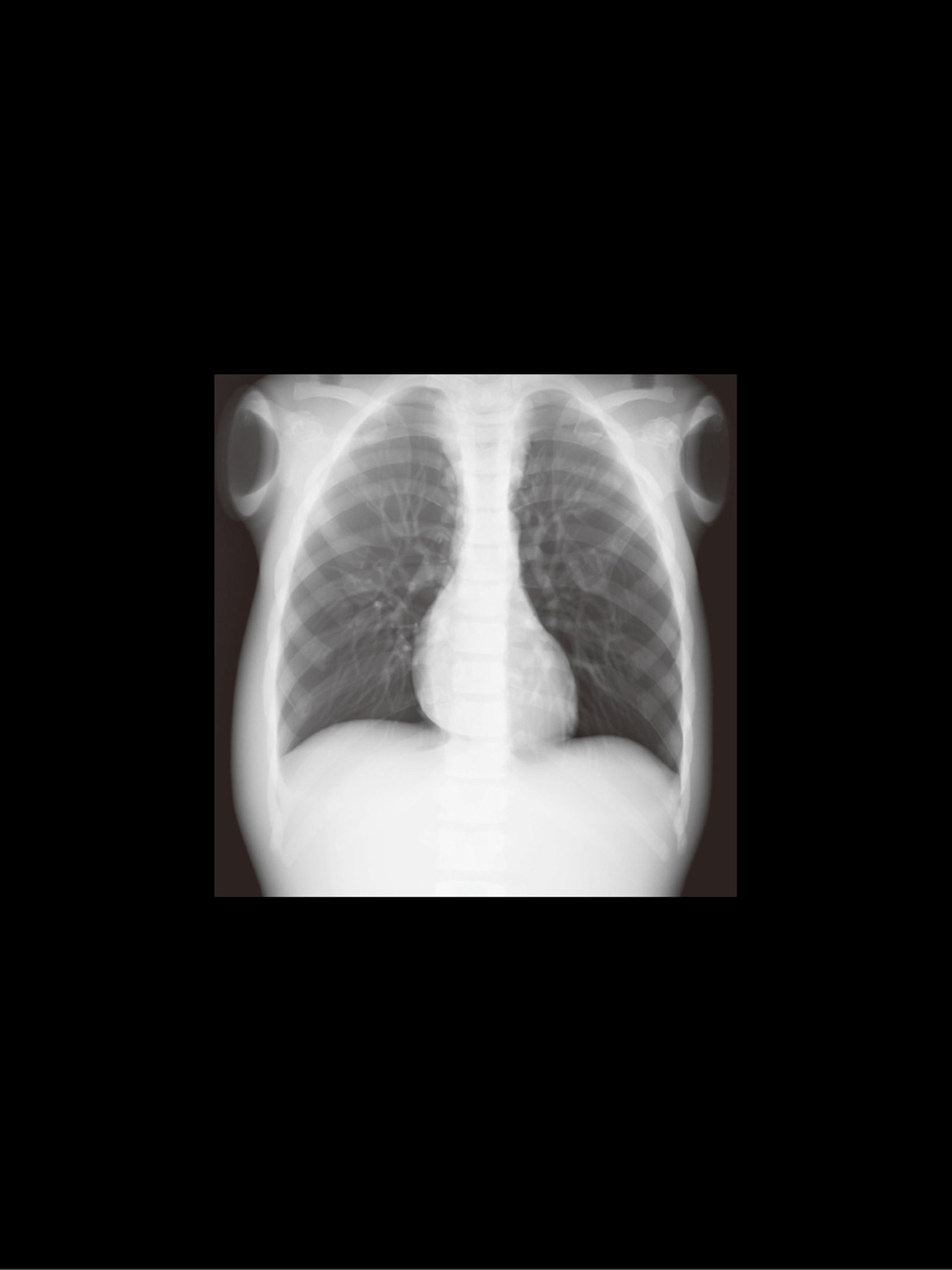

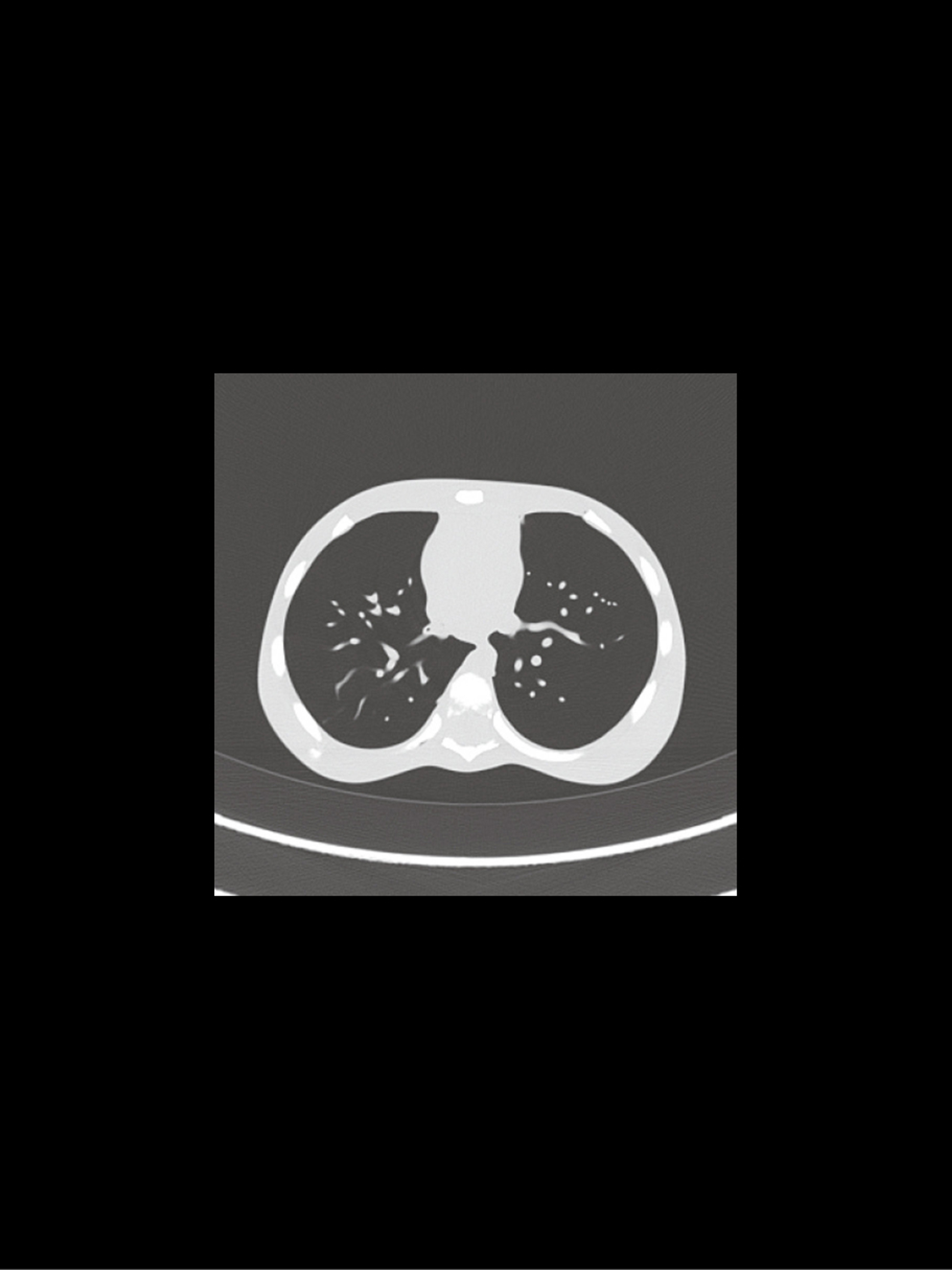

It enables plain X-ray, CT, and patient positioning practice, with radiological absorption and HU values close to the human body.
With human-like articulation for positioning exercises, the phantom can be disassembled into 10 parts for easier handling and transport.
Supplied with accessories and sample data, it provides a comprehensive educational tool for pediatric imaging training and quality assurance.
Specifications
- Application: plain X-ray, CT, pediatric positioning training
- Design: anthropomorphic phantom of a 5-year-old child
- Articulations: close to human joints
- Disassembly: separable into 10 parts
- Anatomy: skull, spine, clavicles, scapulae, ribs, sternum, coxal bones, humerus, antebrachial bones, hand bones, femur, patella, lower leg bones, foot bones
- Materials:
- Soft tissue: urethane-based resin (density 1.06)
- Synthetic bone: epoxy resin (density 1.31)
- Skull: epoxy resin (density 1.11)
- Structure: no metal parts, no liquid
- Set includes: phantom, head supporter, hand fixture belt, screwdriver, sample X-ray data (DVD), manual
- Dimensions: ~110 cm
- Weight: ~20 kg
Models
- 41350-300 - Pediatric Whole Body Phantom "PBU-70"
- 41363-080 - storage case for PH2C/2D
