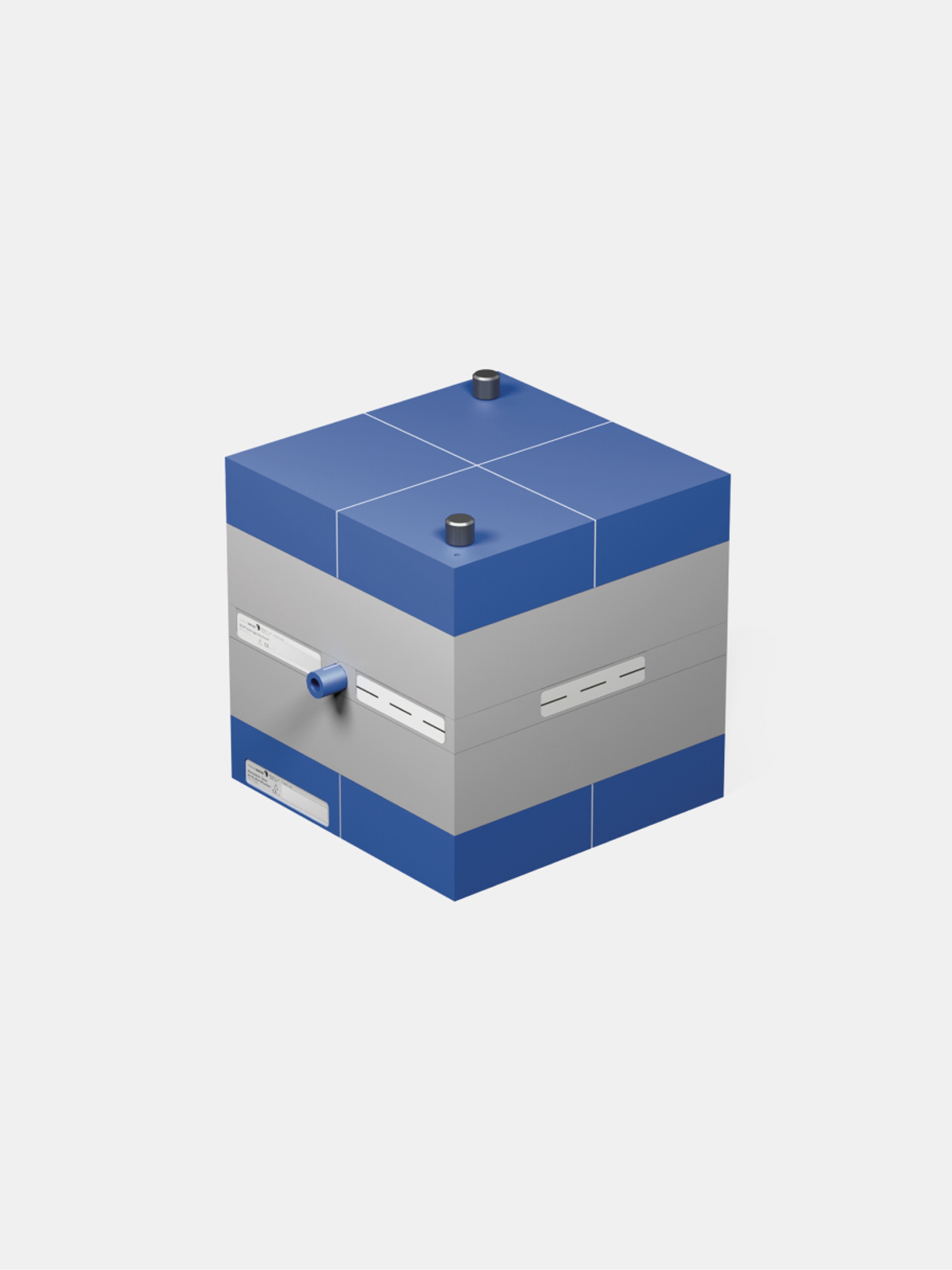

The SDVP is built from water-equivalent Blue Water® slabs, allowing accurate dosimetry for very small SRS targets. Film dosimetry is achieved by stacking five slabs, each accommodating a 2.5 × 2.5 inch film separated by 2 mm for detailed dose profile analysis.
The 2 cm chamber slab includes a removable plug with interchangeable ion chamber inserts, positioning detectors precisely at the center of the phantom for reproducible, high-accuracy measurements.
For advanced testing, the SRS Dosimetric QA Slab offers complex geometric targets and five CT density inserts for CT density model QA. The Heterogeneity Insert simulates lung-equivalent material with embedded fiducial markers to replicate tumors, enabling small-field measurements in heterogeneous conditions.
Compatible with detectors such as the Exradin W1 Scintillator, the SDVP ensures confidence in Monte Carlo dose verification, imaging, treatment planning, and SRS delivery.
Specifications
- Phantom material: Blue Water (water-equivalent)
- Film dosimetry: 5 slabs, 2 mm separation, 2.5 × 2.5 inch film cavity
- Chamber slab: 2 cm thick, removable plug for ion chambers
- Optional QA slab: geometric targets, 5 CT densities
- Heterogeneity insert: lung-equivalent slabs, fiducial markers, tumor simulation
- Applications: SRS small-field dosimetry, Monte Carlo verification, CT model QA
- Recommended: by Accuray for SRS QA
Models
- 91250 – Stereotactic Dose Verification Phantom
- 70650 – SRS Dosimetric QA Slab
- 72313 – Stereotactic Dose Verification Phantom Heterogeneity Lung Insert
- 72771 – SDVP Heterogeneity Insert Plug drilled for Optional Chamber with gold markers
- 71202 – SDVP 91250 Plug with cavity drilled for ion chamber of choice
- 71205 – Stereotactic Top Hat and Cradle
- 75028 – Stereotactic Dose Verification Phantom, Extended Warranty, Annual Hardware Agreement
