Dynamic Cardiac CT Phantom SKK II (PH-82)

Dynamic Cardiac CT Phantom SKK II (PH-82)
Gallery 1
Gallery 2
Gallery 3
Dynamic Cardiac CT Phantom SKK II (PH-82)

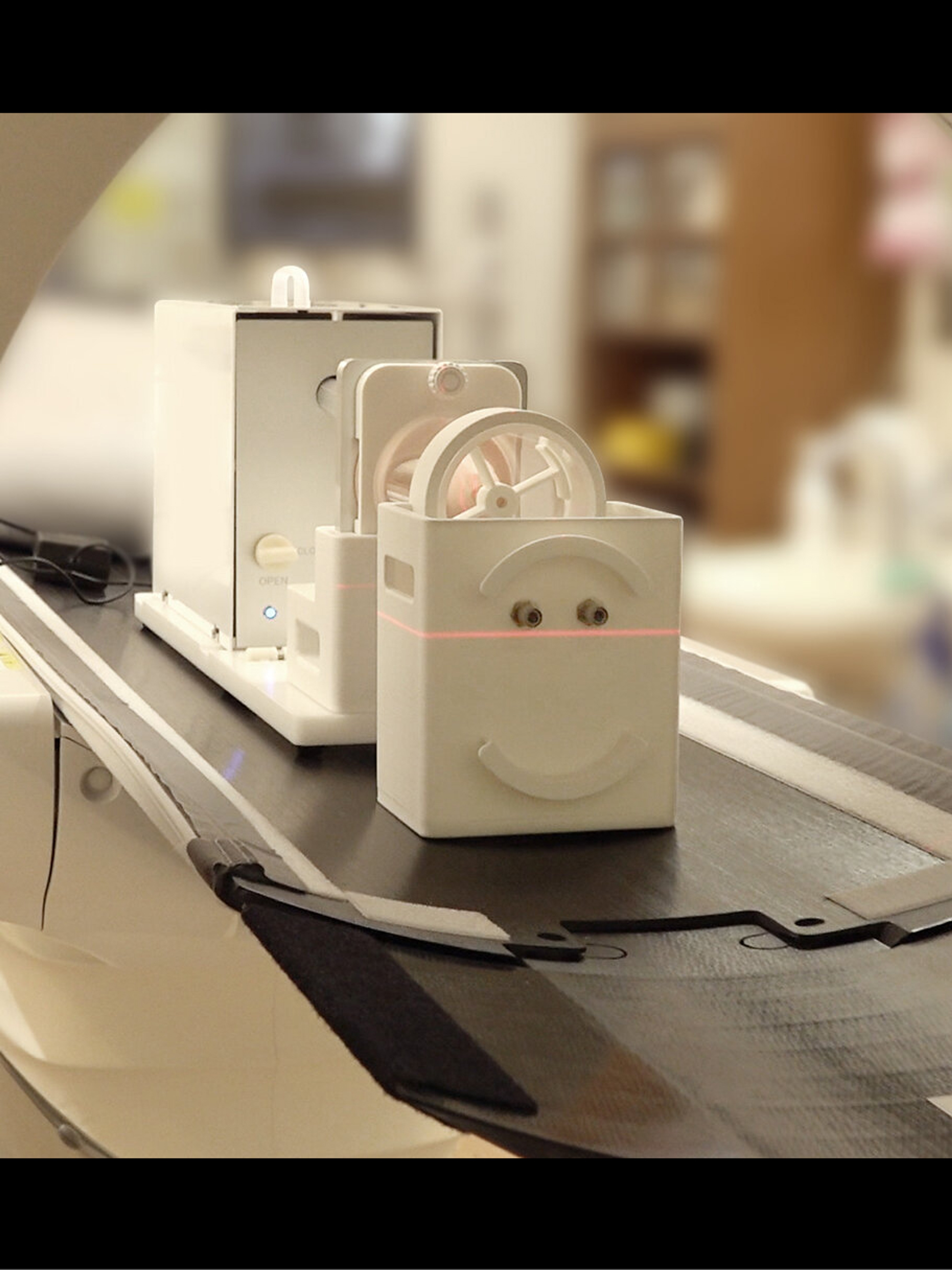

The Dynamic Cardiac CT Phantom – SKK II (PH-82) is designed for evaluation and research in cardiac and thoracic CT with ECG gating. The simulated heart is made of CT tissue-equivalent material and includes various simulated coronary arteries: anatomical, with stenosis, and contrast-enhanced types.
Operation is tablet-driven, allowing direct adjustment of motion parameters and heart rate. Arrhythmic modes are available to stress-test image reconstruction and synchronization performance.

Specifications

• Type: dynamic cardiac phantom for CT with ECG gating
• Heart material: CT tissue-equivalent
• Coronary arteries: anatomical, stenosis, and contrasted types
• Control interface: tablet
• Heart rate range: 30 to 120 bpm
• Ejection volume rate: adjustable from 0 to 100 %
• Arrhythmic modes: 3
• Applications: left ventricular ejection volume measurement, coronary image quality evaluation

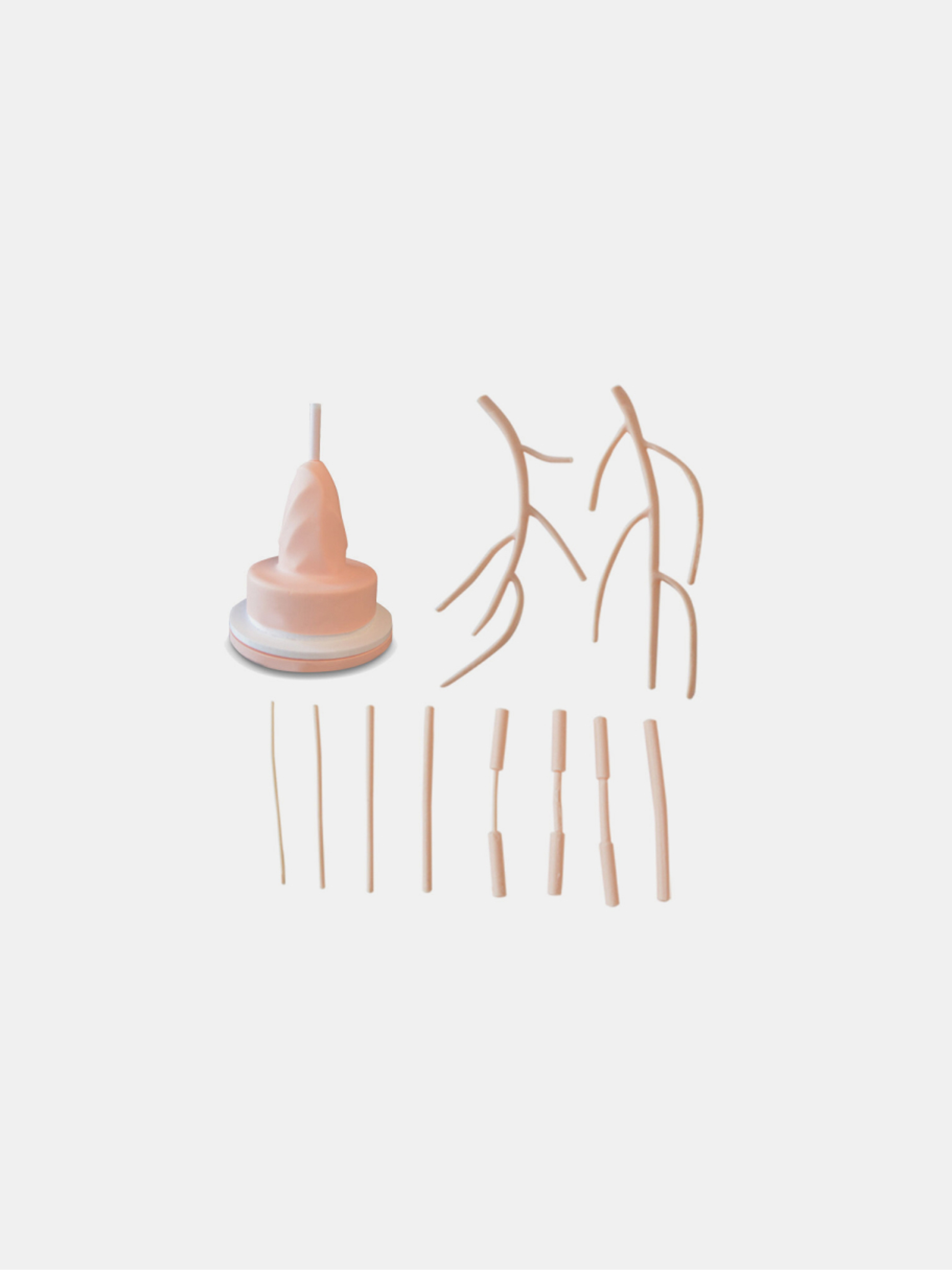

• Set includes: 1 drive unit, 3 heart phantoms, 1 protective cover, 1 set of simulated coronary arteries, 1 controller, 1 storage case
• Assembled size: 90 cm × 20 cm × 32.5 cm
• Weight: ≈ 18.5 kg
• Power supply: 100 to 240 V, 50/60 Hz
• Power requirement: ≈ 225 W

Models

  • 41954-000 - Dynamic Cardiac CT Phantom SKK II (PH-82)
