The PH-48 Dynamic Heart and Lung Phantom is an anthropomorphic thoracic phantom designed to realistically simulate respiratory and cardiac motion in computed tomography. It is intended for performance evaluation of CT scanners in respiratory and cardiac gating, dynamic CT, dosimetry, and radiotherapy planning applications.
The phantom realistically reproduces diaphragm motion, linear displacement and rotation of a pulmonary nodule, as well as systolic and diastolic motion of a simulated heart. Heart, diaphragm, and nodule motions are independent and can be synchronized using programmable respiratory and cardiac cycles (Synchoro mode).

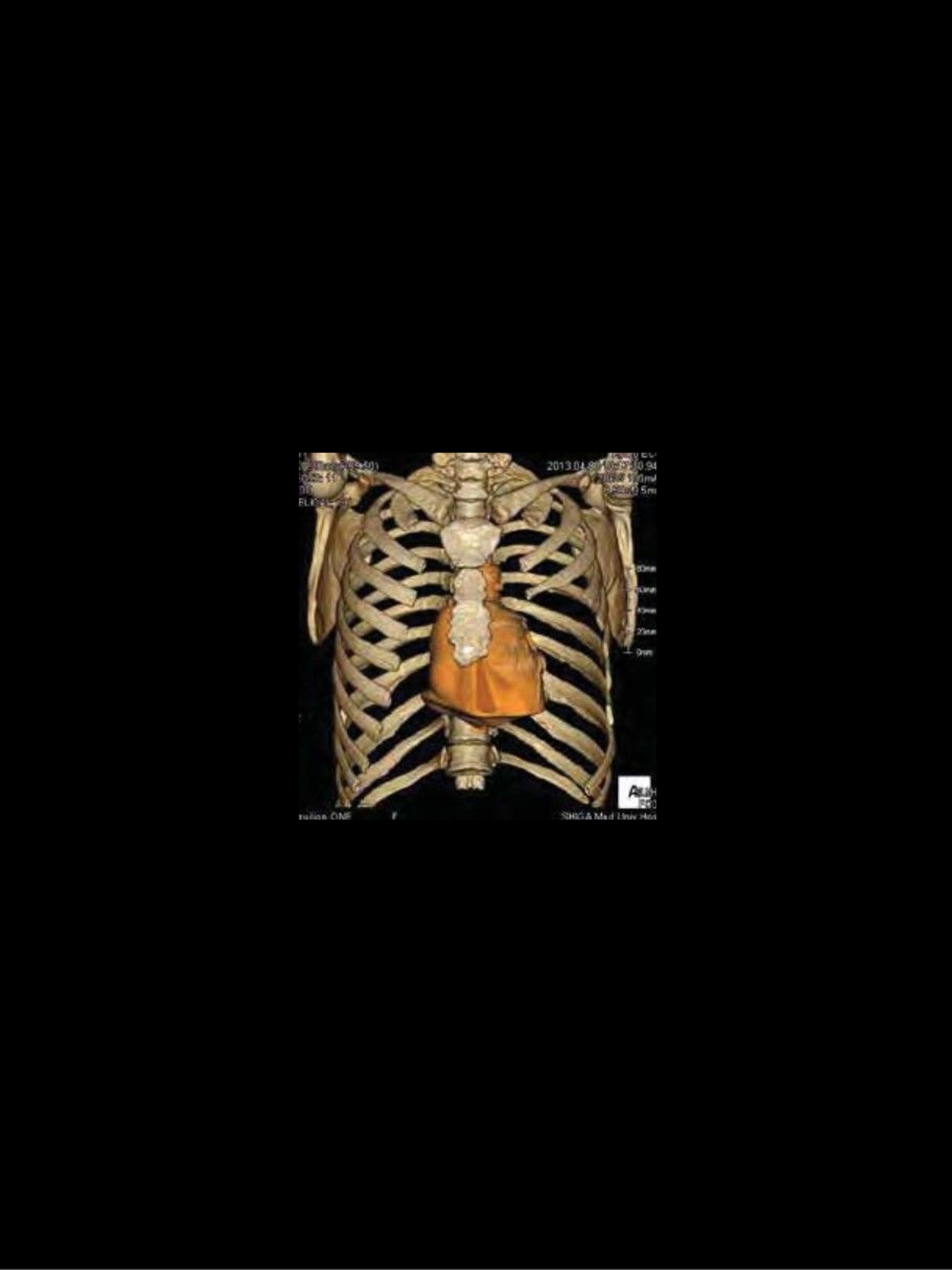

The system includes a life-size thoracic torso, interchangeable elastic heart models with coronary arteries (including stenotic examples), a movable diaphragm block, a rotating tumor module, and a set of simulated pulmonary nodules.
Operation is performed via a dedicated touch tablet, allowing selection of respiratory and cardiac profiles, parameter adjustment, and storage of combined motion sequences.

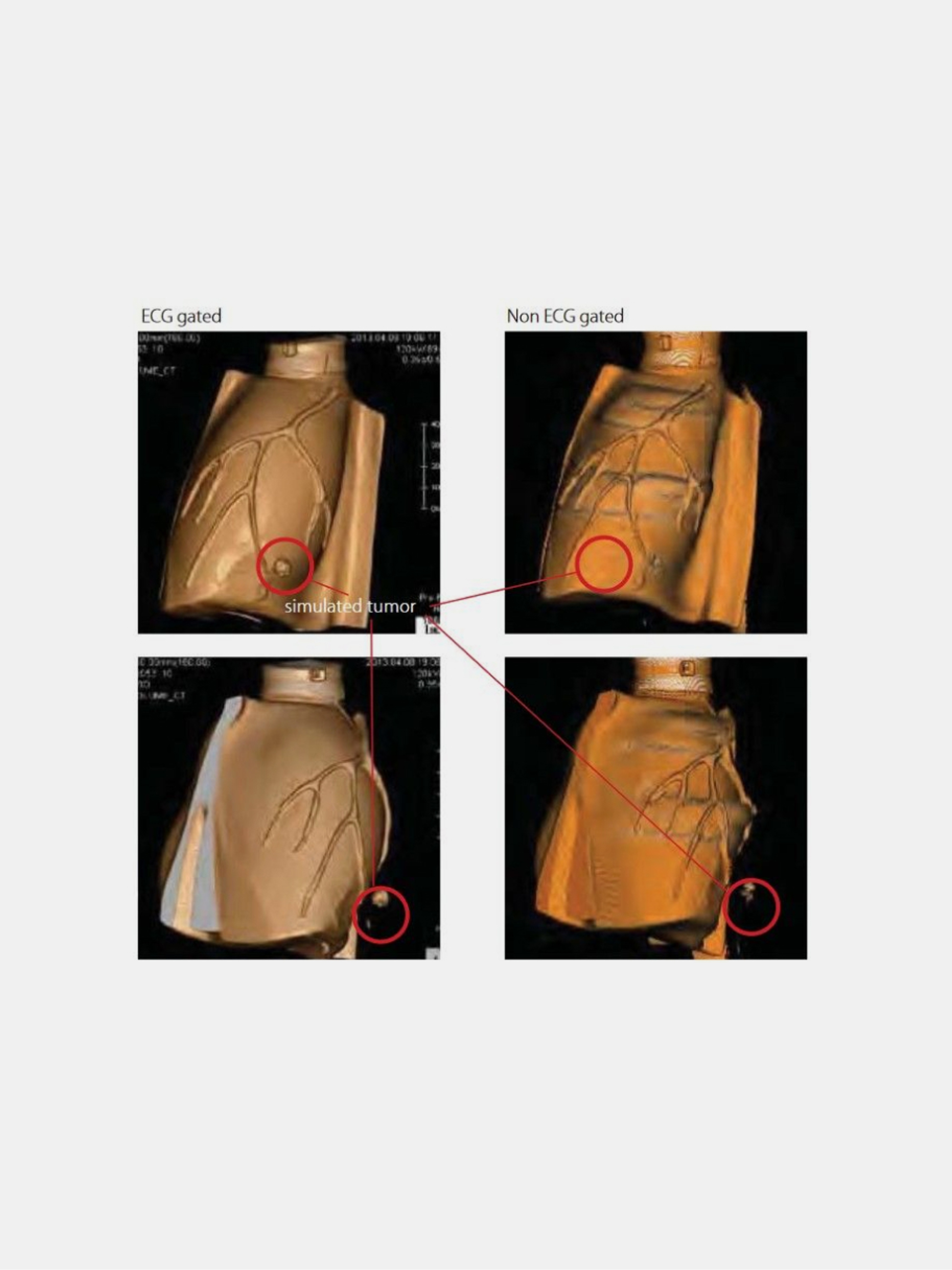

The phantom supports ECG-gated CT acquisitions using ECG output plates that generate a simulated R-wave for cardiac synchronization.
Specifications
- Dynamic thoracic phantom for CT with respiratory and cardiac motion
- Simulated heart rate: 30 to 120 beats/min
- Left ventricular ejection volume: 60, 70, 80, 90, 100 ml
- Adjustable ejection fraction: 30 %, 35 %, 40 %, 45 %, 50 %, 55 %, 60 %
- Simulated respiratory rate: 6 to 24 cycles/min
- Linear pulmonary nodule motion: 8 to 64 mm
- Pulmonary nodule rotation range: 50 to 70°
- Included anatomical structures: thoracic torso, interchangeable simulated heart, coronary arteries with stenoses, movable diaphragm, simulated pulmonary nodules
- Operating modes: heart only, respiration only, combined heart + respiration (Synchoro mode)
- Control: dedicated wireless touch tablet (included)
- ECG compatibility: ECG output plates for cardiac gating
- Power supply: AC 110–240 V, 50/60 Hz
- Materials: urethane resin (tissue equivalent) and synthetic bones
Dimensions and weight
- Chest circumference: approximately 940 mm
- Body thickness: approximately 220 mm
- Packing size: 103 × 70 × 37 cm
- Weight: approximately 18 kg (phantom body) + 21.5 kg (actuation mechanism)
Set includes
- 1 drive unit
- 1 nodule rotation unit
- 1 diaphragm block
- 1 chest phantom
- 3 simulated heart models
- 1 set of simulated tumors (15 types)
- 1 dedicated touch tablet
- 1 carrying case
Models
- 41327-000 - Dynamic Heart & Lung Phantom (PH-48)
