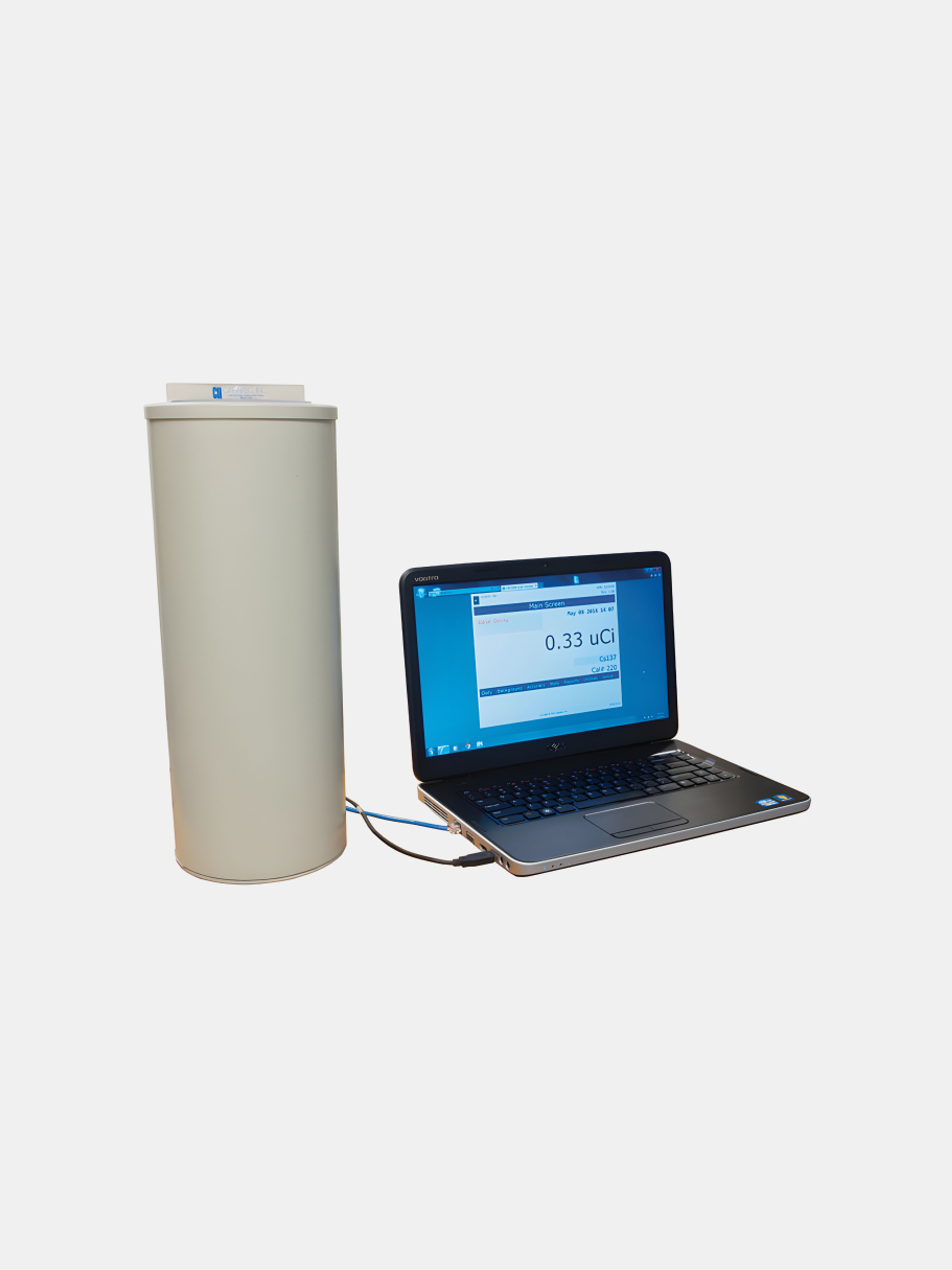

The CRC-PC Smart Chamber from Capintec is an activity measurement chamber designed with native network connectivity and remote display capability, without the need for a dedicated console.
The chamber connects directly to the department network, allowing user interface access from a PC and direct integration with nuclear medicine management systems. This architecture simplifies IT integration and supports efficient daily workflows.
Two versions are available to match different use cases. The HL (Hot Lab) model is optimized for low-activity measurements while covering a wide clinical range. The RPh (Radiopharmacy) model supports higher activity levels, suitable for generators and cyclotron facilities.
The CRC-PC Smart Chamber includes automated quality control tests, an internal database for QC data, molybdenum-99 assays and user logs, as well as software upgrades via Ethernet. Its compact footprint and native network connectivity make it well suited for modern nuclear medicine and radiopharmacy environments.
Specifications
Display and connectivity:
- Network-connected chamber without dedicated console

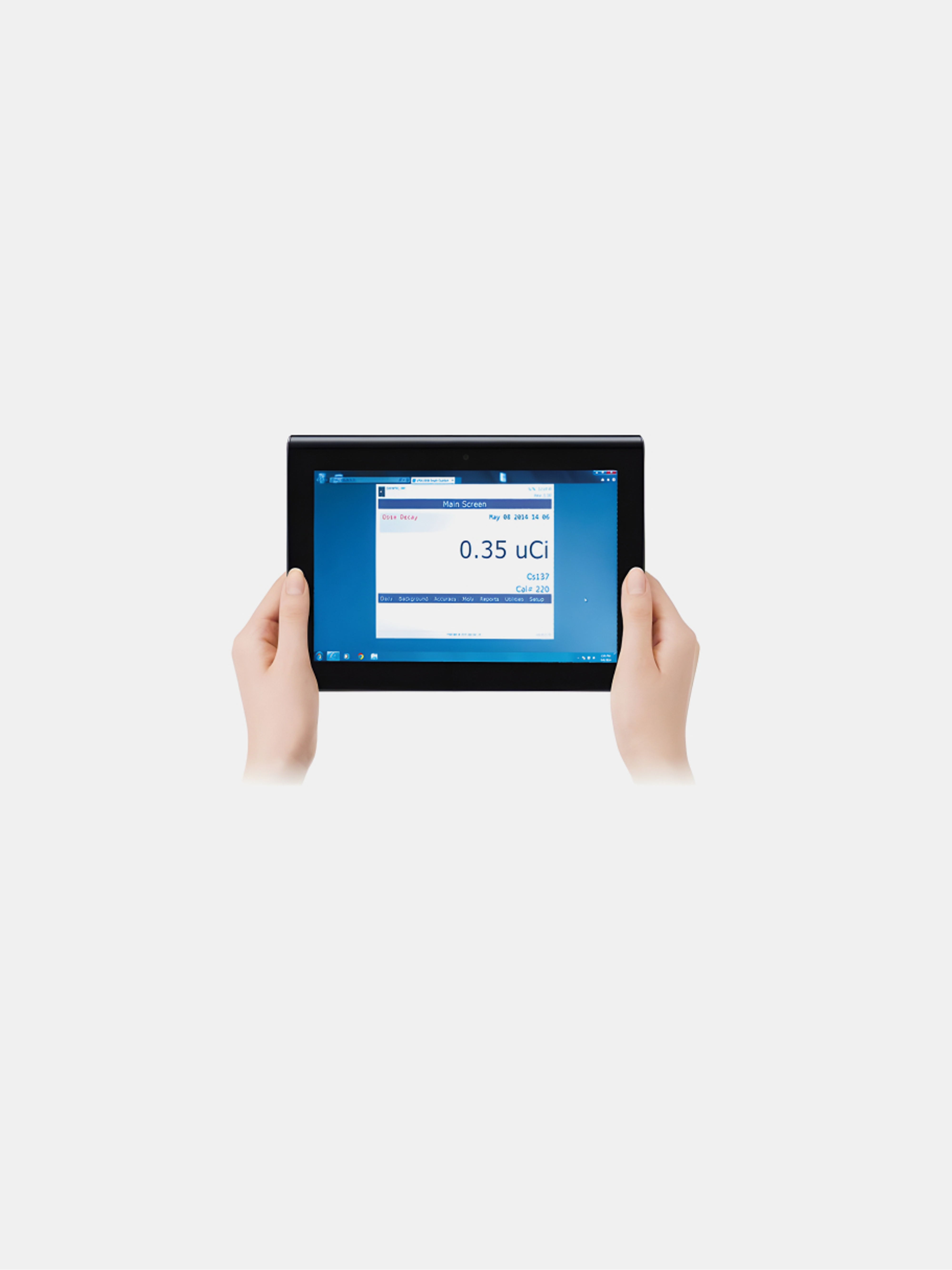

- User interface accessible from a network PC
- Remote display via the department network
- Direct interface with nuclear medicine management systems
Chamber:
- Type: thin-wall, deep-well, sealed and pressurized chamber
- Fill gas: ultra-pure argon
- Well diameter: 6.1 cm
- Well depth: 25.4 cm
Measurement range:
- Mode: auto-ranging
- HL version: up to 6 Ci Tc-99m and 2 Ci F-18
- RPh version: up to 72 Ci Tc-99m and 20 Ci F-18
Measurement performance:
- Accuracy: better than ± 2 %
- Linearity: ± 2 %
- Repeatability: ± 1 % over 24 hours with continuous operation
Integrated quality control:
- Automatic zero and background adjustment
- Daily constancy, accuracy and voltage tests
- Full system self-diagnostics
Advanced functions:
- Built-in database for QC, Mo-99 assays and user logs
- User-adjustable threshold for faster response times
- Software upgrades via Ethernet
- Power over Ethernet (PoE) or USB power
Models
- 5130-20253 - Dose Calibrator CRC - PC Smart Chamber HL System
- 5130-20254 - Dose Calibrator CRC - PC Smart Chamber RPh System
Optional Components:
- 5130-0006 - Moly Assay Canister
- 7300-2450 - Environmental shield
- 7300-2004 - Chamber well insert
- 7300-2005 - Dipper
- 5120-2257 - Custom length liner
- 5120-2258 - Custom length dipper
- 5120-2259 - PVC custom dipper
