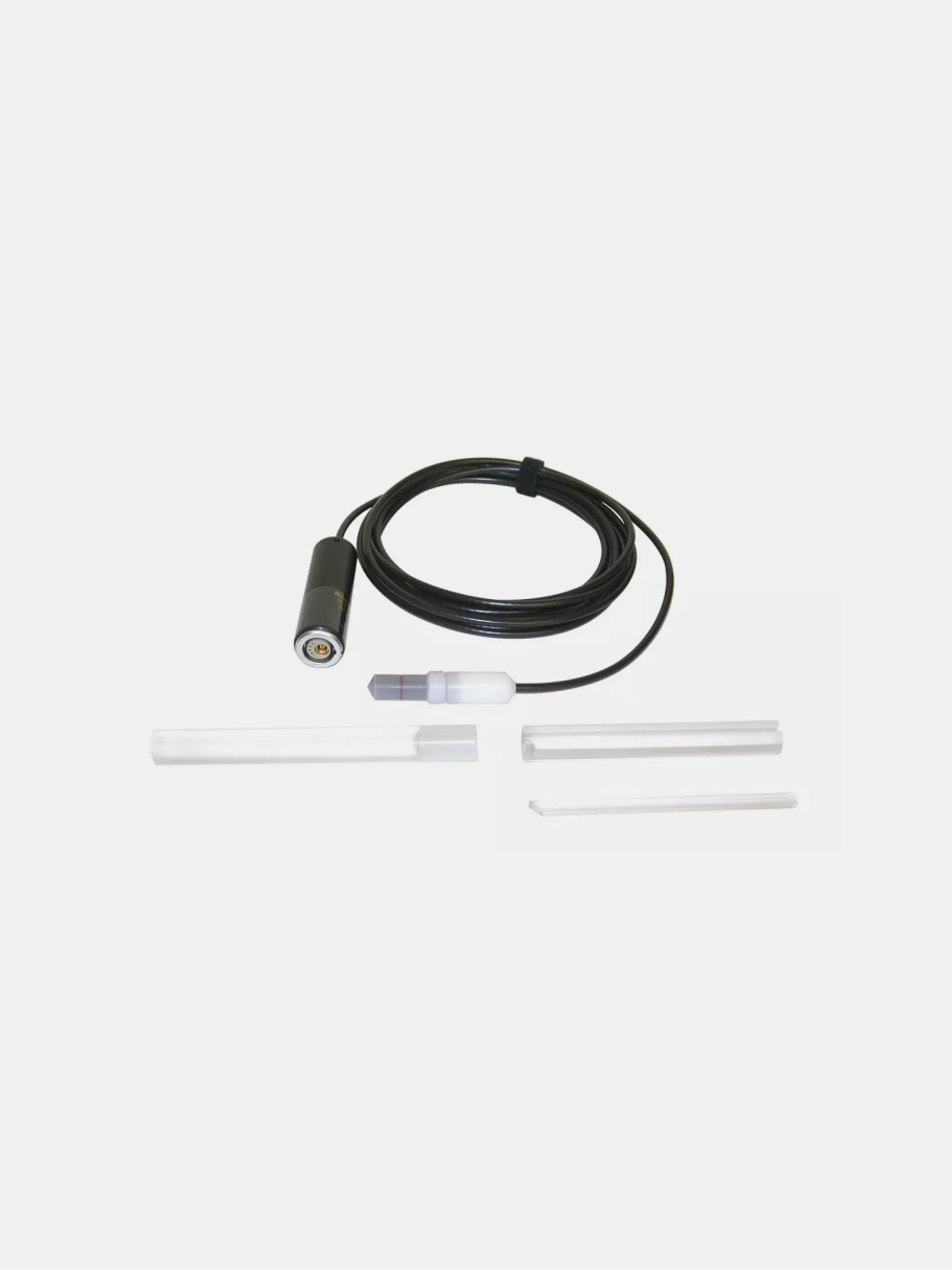

The Accu-Gold CT ionization chamber is designed for accurate measurement of Computed Tomography Dose Index (CTDI), Dose Length Product (DLP) and Dose Width Product (DWP) on modern CT scanners.
It provides a flat energy response across its entire active length, ensuring highly reproducible results both in-air and inside CT phantoms.
Two complementary models are available :
- 10X6-3CT : standard CTDI / DLP / DWP cylindrical chamber, 3 cm³ active volume, 100 mm active length, ideal for beam qualities from 100 to 150 kV.
- 10X6-0.6CT : small-volume (0.6 cm³) thimble chamber for narrow or high-dynamic multi-slice CT beams.
Each chamber is individually calibrated with traceable certification and fully compatible with Accu-Gold+, Accu-Dose+ and Accu-Gold Touch systems.
Specifications
• Type : air ionization chamber for CT applications
• Models : 10X6-3CT (3 cm³) and 10X6-0.6CT (0.6 cm³)
• Active length : 100 mm (3CT model)
• Active volume : 3 cm³ (3CT) / 0.6 cm³ (0.6CT)
• Energy range : 100 to 150 kV (RQT 8 to RQT 10)
• Response uniformity : ±5 % along active length
• Response time : < 1 ms
• Materials : C552 electrodes, low-absorption polymer wall
• Calibration : X-ray beam at 120 kV (certificate included)
• Compatibility : Accu-Gold+, Accu-Dose+ and Accu-Gold Touch systems
• Applications : CTDI (dose per rotation), DLP (dose length product) and DWP (in-air dose width integration) measurements in air or CT phantom
Models
• 10X6-3CT - CTDI / DLP / DWP ionization chamber – 3 cm³ – 100 mm active length
• 10X6-0.6CT - CT thimble ionization chamber – 0.6 cm³ – for narrow or high-dynamic CT beams
