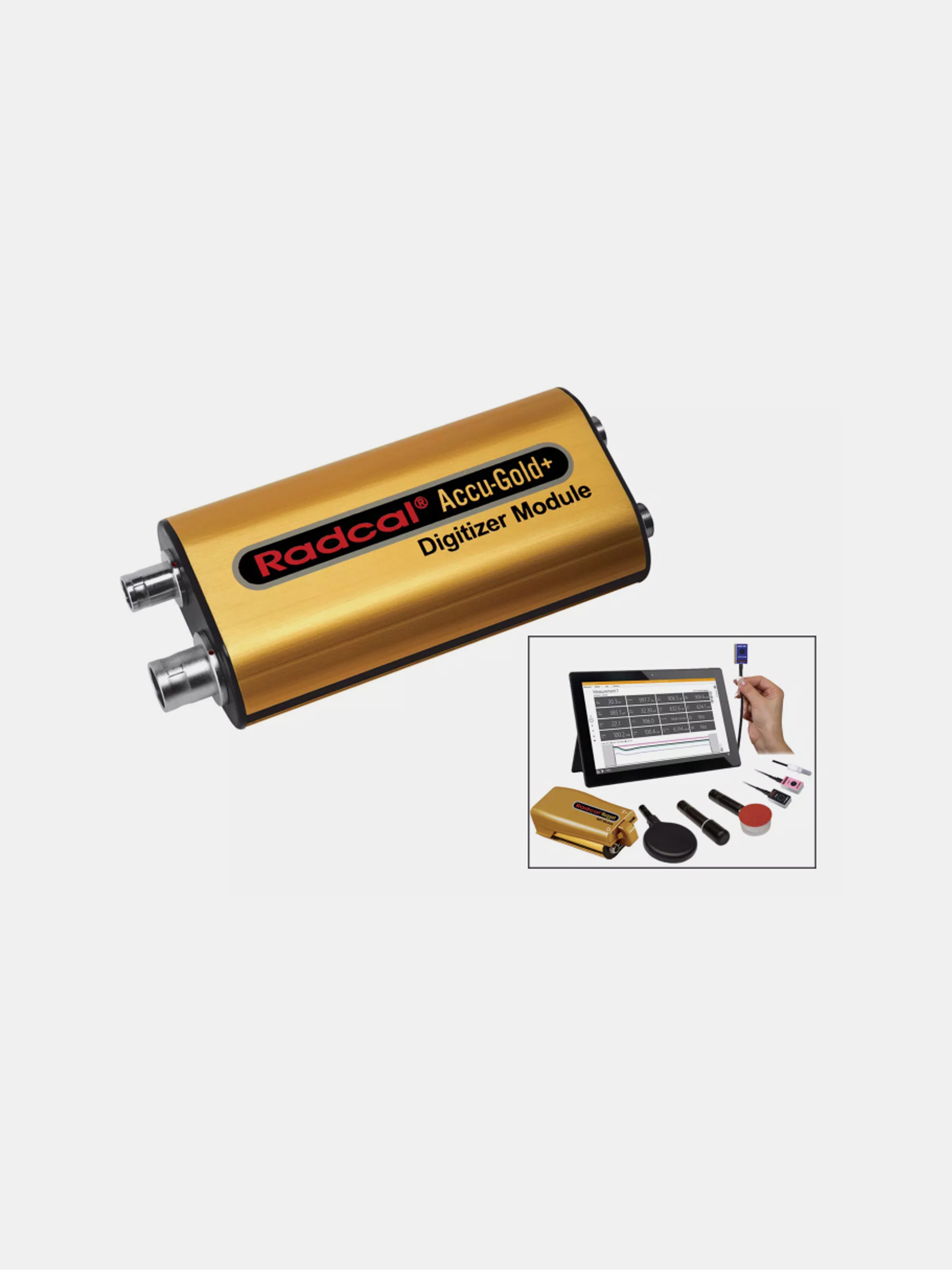

The Accu-Gold+ is Radcal’s flagship Windows-based QA system for diagnostic imaging equipment.
Designed for use with a Windows PC or tablet, it provides a comprehensive measurement and analysis platform using Accu-Gold Windows or Accu-Gold Excel software, featuring real-time waveform display and Excel export.
It supports all Radcal sensors: ion chambers, solid-state dose diodes, compact multisensors (AGMS), mA/mAs probes (invasive and non-invasive), and the AGLS light sensor for luminance and illuminance.
An optional Accu-Gold Nugget wireless adapter enables cable-free operation, and the system can be upgraded to the Accu-Gold Touch configuration if a stand-alone solution is required.
Specifications
• Type: PC-connected QA digitizer module (Windows interface)
• User interface: Accu-Gold or Accu-Gold Excel software
• Supported sensors: ion chambers 10×6, DDX6 diodes, AGMS multisensors, mA/mAs probes 90M, AGLS light sensor
• Connectivity: USB standard or optional Wi-Fi (Accu-Gold Nugget)
• Simultaneous parameters: up to 16 displayed per measurement
• Measured data: dose, dose rate, kV, HVL, filtration, mA, mAs, exposure time, luminance, waveform analysis
• Data export: Excel and user templates
• Power supply: via USB (powered by PC)
• Compliance: IEC 61674, EN 61326-1, RoHS, WEEE, REACH
• Modalities: radiography, fluoroscopy, mammography, CT, dental
Models
• AGDM+ - Accu-Gold+ Digitizer Module - complete X-ray QA system for dose, kV and mA measurement on Windows PC or tablet
Compatible accessories:
• AGNugget - Wi-Fi adapter for Accu-Gold+ digitizer module
• Sensors:
- AGMS-DM+ / AGMS-D+ / AGMS-M+ – solid-state multisensors for dose, kV, time and HVL
- DDX6-WL – solid-state dose and dose rate sensor
- 90M9-AG / 90M10-AG – invasive and non-invasive mA/mAs probes
- AGLS – luminance / illuminance sensor
- 10X6- series – Radcal ion chambers (various modalities)
