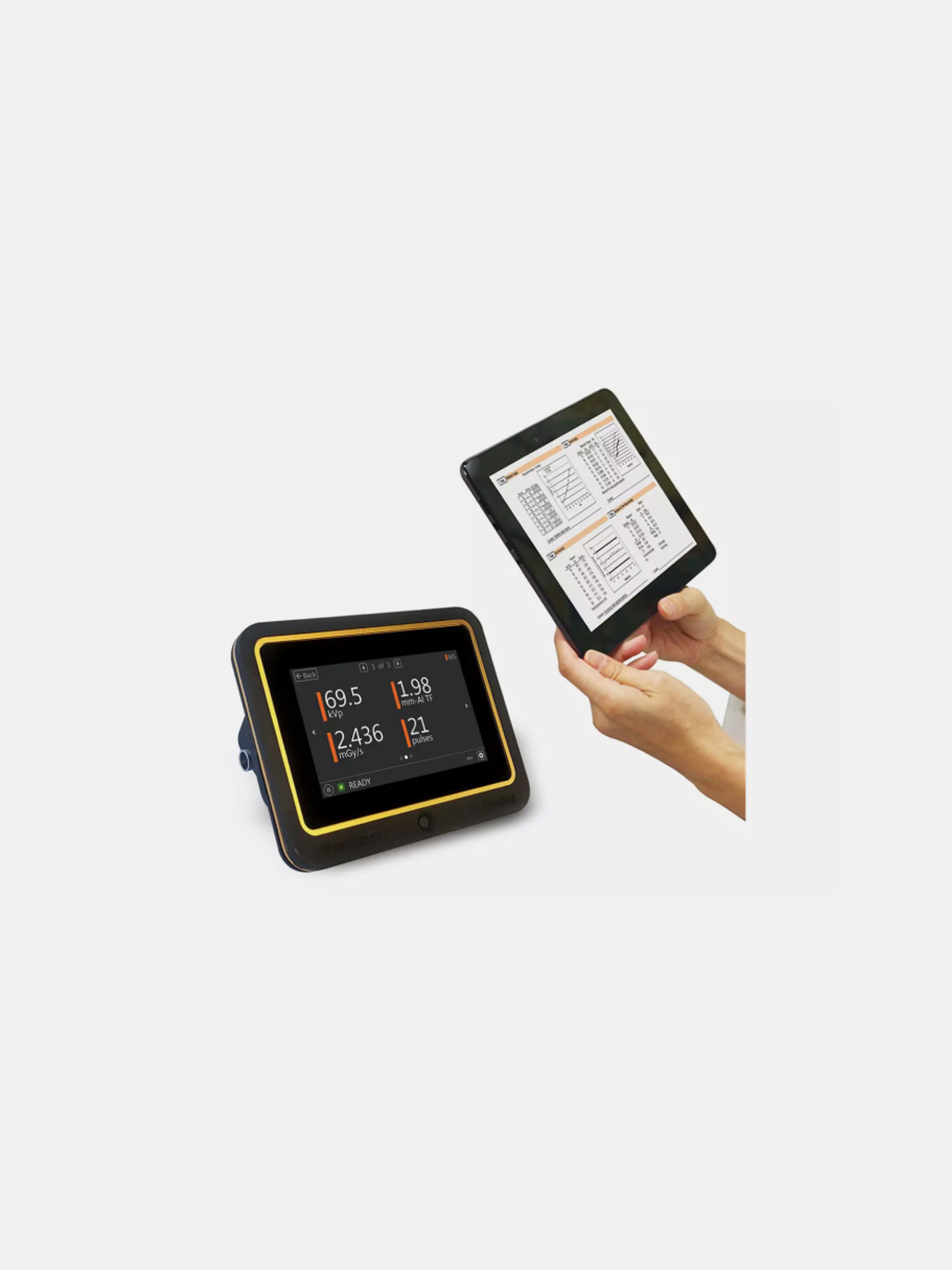

The Radcal Touch Series, also known as Accu-Gold Touch, is the next generation of stand-alone X-ray QA instruments for radiology, fluoroscopy, mammography, CT and dental applications.
Each system features a 5’’ touchscreen display and Smart Profile technology, which automatically configures trigger, filtration and exposure end parameters without user input.
The Touch Professional Series includes USB and Wi-Fi connectivity, enabling PC operation through Accu-Gold Windows software for Excel reporting, waveform analysis and remote control.
The line is available in three main configurations:
- Accu-Gold+ Touch: supports all Radcal sensors,
- Rapid-Gold+ Touch: supports solid-state sensors only,
- Accu-Dose+ Touch: for dose and dose-rate measurements with ion chambers and diodes.
Specifications
• Type: stand-alone Touch or connected Touch Pro with USB/Wi-Fi
• Display: 12.7 cm × 7.6 cm TFT LCD (800 × 480 px) capacitive touch with auto orientation
• Storage: 16 GB (> 100 000 exposures)
• Battery: 5.5 Ah Li-Poly, > 8 h runtime, < 5.5 h recharge
• Connectivity (Pro): USB type A 2.0, micro-B 2.0, Wi-Fi 2.4 GHz 802.11 b/g/n
• Built-in profiles: Radiography, Fluoro, Mammo Combo, CBCT, Dental
• Compatible sensors: entire Radcal family (10×6 ion chambers, AGMS multisensors, DDX6 diodes, 90M mA/mAs, AGLS light, DAP Chkp+)
• Dimensions: 114 mm × 92 mm × 158 mm – weight 0.7 kg
• Operating conditions: 15 °C to 35 °C – humidity ≤ 80 % RH
• Compliance: IEC 61674, EN 61326-1, RoHS, WEEE, REACH
Models
• AGT3-P-AG - Accu-Gold+ Touch Pro - full multi-sensor system (ion, diodes, multisensors, mA/mAs, light) with Wi-Fi and USB
• AGT3-AG - Accu-Gold+ Touch - stand-alone multi-sensor version without Wi-Fi
• AGT3-P-RG - Rapid-Gold+ Touch Pro - multi-sensor + mA/mAs system (no ion chamber support) with Wi-Fi and USB
• AGT3-RG - Rapid-Gold+ Touch - stand-alone multi-sensor + mA/mAs version without Wi-Fi
• AGT3-P-AD - Accu-Dose+ Touch Pro - ion chamber + dose diode system with Wi-Fi and USB
• AGT3-AD - Accu-Dose+ Touch - stand-alone ion chamber + dose diode version without Wi-Fi
