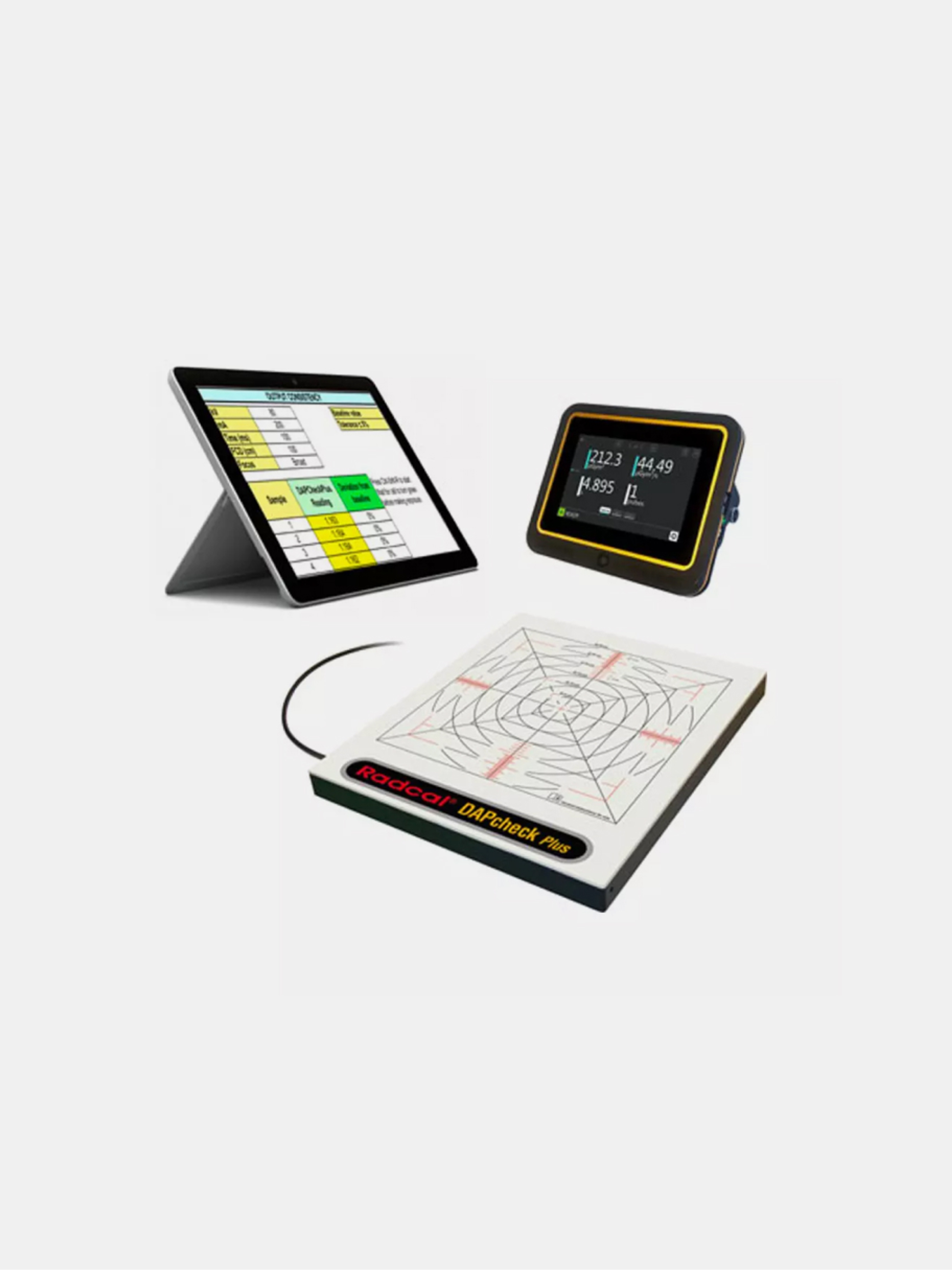

The Accu-Gold DAPCheck Plus is a dose monitoring detector designed for Dose Area Product (DAP) and DAP rate measurements in radiography, fluoroscopy, interventional imaging and digital X-ray.
It enables clinicians to monitor patient dose in real time without interfering with the primary beam through its transparent, low-absorption design.
The detector is lightweight, easy to mount, and calibrated for a broad energy range (40–150 kV). It features low absorption (< 3 %) to minimize image quality impact and is compatible with Accu-Gold+, Accu-Dose+ and Touch systems.
Specifications
• Type: DAP detector (Dose Area Product)
• Measurement range: 0.01 μGy·m² to 999 999 μGy·m²
• Resolution: 0.01 μGy·m²
• Rate range: 0.01 μGy·m²/s to 30 000 μGy·m²/s
• Absorption: < 3 % in primary beam
• Energy range: 40 to 150 kV
• Minimum measurement time: 1 ms
• Compatibility: Accu-Gold+, Accu-Dose+, Touch Series
• Calibration: individual beam quality calibration
• Operating conditions: 15 °C to 35 °C, ≤ 80 % RH
Models
- DAPCKP+ - DAPCheck Plus
